接續端子(URUYUB)

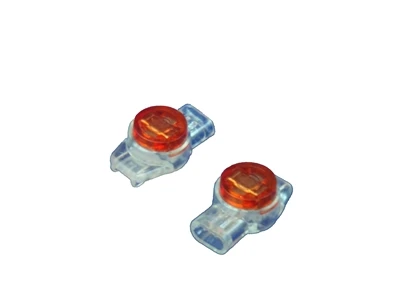

UR (TSCUR)
FEATURES

Make a clean, solid and rapid connection of your wires to keep your communication lines free of noise. Also it’s available to handle a wide range of conductor sizes and allows you to handle higher pairs wire.



SPECIFICATIONs

1.       Material: Solid Copper

2.       Insulation: PC

3.       Max Insulation OD: 1.67mm



Applications

A two-or three-wire connection for Y type divergence wire of solid copper 0.9-0.4mm(19-26 AWG) air core or 0.65-0.4mm(22-26 AWG) filled cable.

UY (TSCUY)

FEATURES

Make a clean, solid and rapid connection of your wires to keep your communication lines free of noise. Also it’s available to handle a wide range of conductor sizes and allows you to handle higher pairs wire.



SPECIFICATIONS

1.       Material: Solid Copper

2.       Insulation: PC

3.       Max Insulation OD: 1.52mm



Applications

A two-wire connection for solid copper 0.65-0.4mm(22-26 AWG) cable.

UB (TSCUB)

FEATURES

Make a clean, solid and rapid connection of your wires to keep your communication lines free of noise. Also it’s available to handle a wide range of conductor sizes and allows you to handle higher pairs wire.



SPECIFICATIONS

1.       Material: Solid Copper

2.       Insulation: PC

3.       Max Insulation OD: 1.27mm



Applications

A tap connection for T type divergence wire of solid copper 0.65-0.4mm(22-26 AWG) air core or 0.5-0.4mm(24-26 AWG) filled core cable.
